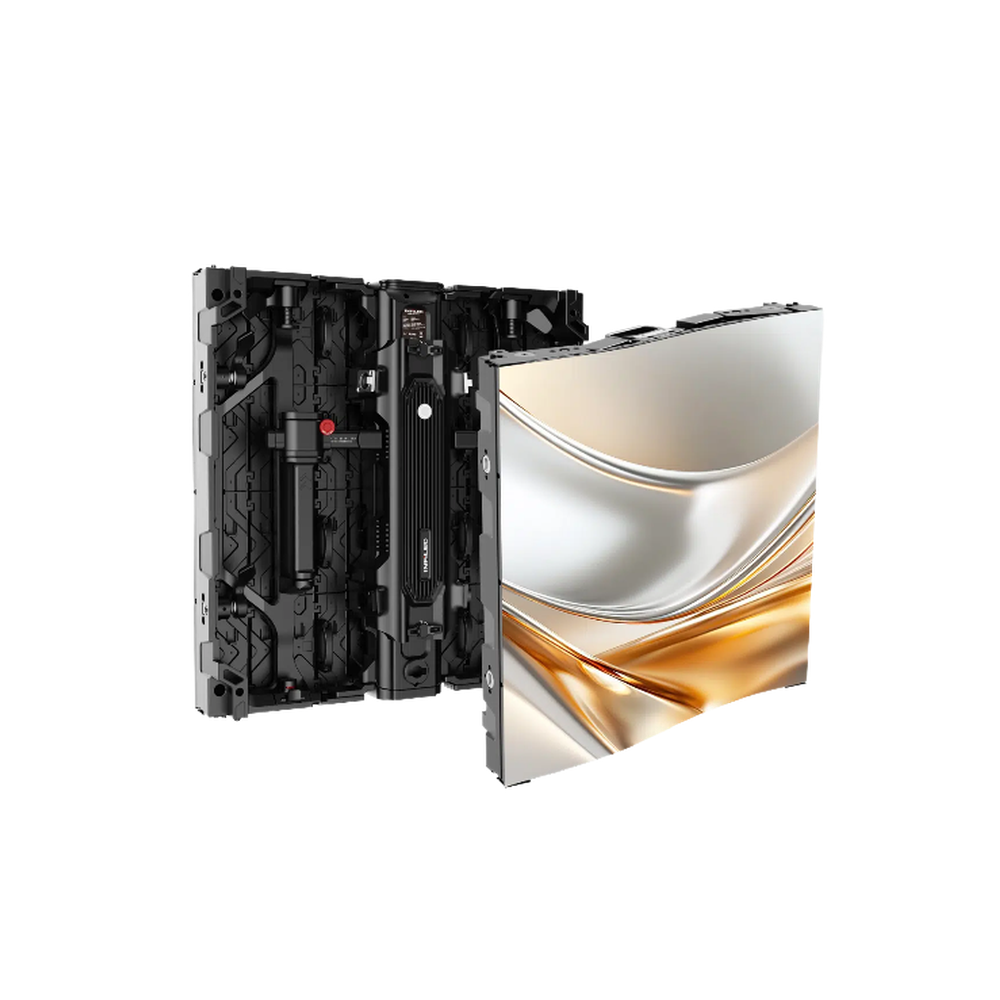

INFiLED Xmk3 1.9 Curved — 1.9mm Fine Pitch Curved LED Panel
The INFiLED Xmk3 1.9 is a premium fine-pitch LED panel designed for applications demanding both high resolution and creative curved configurations. At 1.9mm pixel pitch, it delivers striking image quality at close viewing distances — perfect for broadcast studios, corporate lobbies, museum installations, and immersive stage designs.
The Xmk3 series supports both concave and convex curves, allowing designers to create smooth wraparound video walls, cylindrical displays, and organic shapes impossible with flat panels alone.
Key Features
- 1.9mm pixel pitch — 4K resolution achievable at modest wall sizes
- Concave and convex curve capability (-10° to +10° per panel)
- 600 x 337.5mm cabinet — optimized for fine-pitch applications
- Magnetic front-service modules — swap in seconds without tools
- Die-cast aluminum frame — lightweight yet rigid for precise alignment
- 16-bit color processing with HDR support
- 3840Hz refresh rate — flicker-free on camera
Technical Specifications
| Pixel Pitch | 1.9mm |
| LED Type | 4-in-1 Mini LED |
| Cabinet Size | 600 x 337.5 x 72mm |
| Weight | 7.5 kg per panel |
| Brightness | 800 nits (calibrated) |
| Refresh Rate | 3,840 Hz |
| Color Depth | 16-bit |
| Viewing Angle | 170° H / 170° V |
| Curve Range | -10° to +10° per panel |
| Service Access | Front magnetic |
| IP Rating | IP30 (indoor) |
Ideal Applications
- Broadcast studios and virtual production (VP/XR)
- Corporate lobbies and experience centers
- Museum and gallery installations
- Immersive stage designs and concert touring
- Control rooms and command centers
- High-end retail environments
