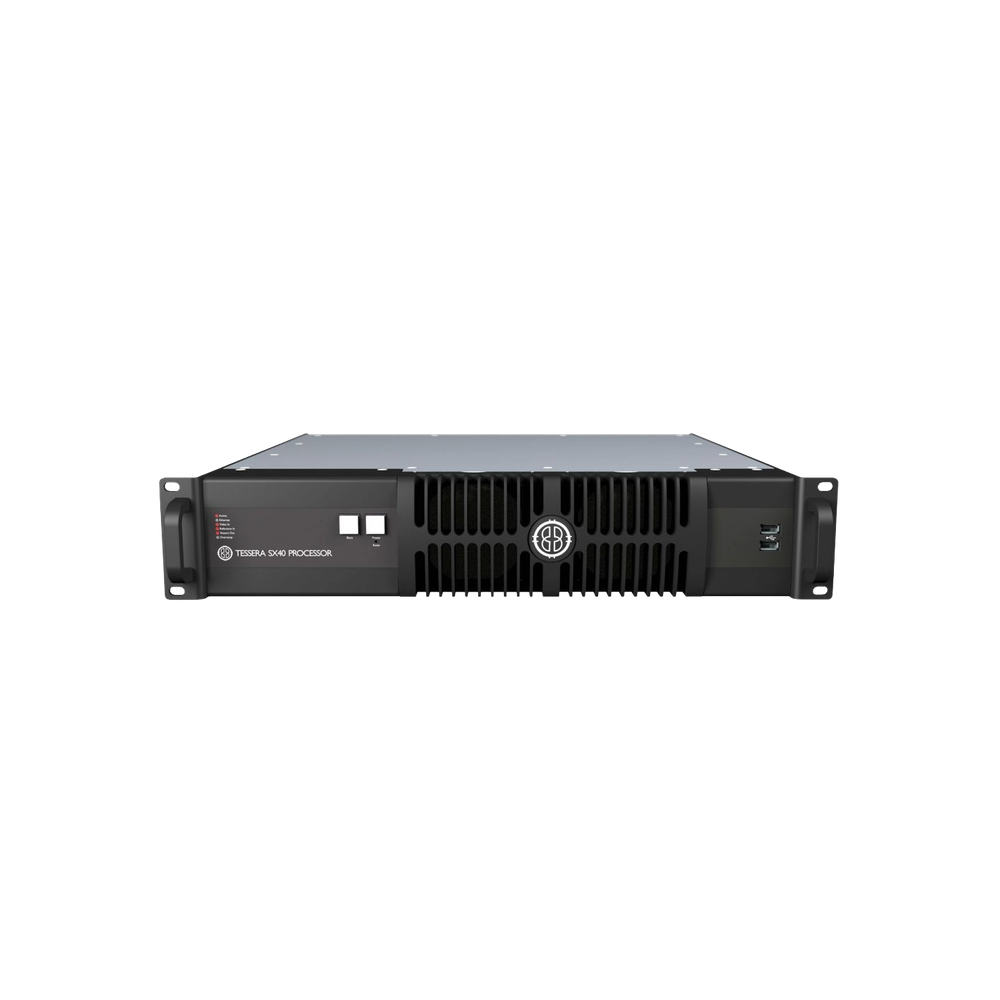

Brompton Tessera SX40 — Premium LED Video Processor
The Brompton Tessera SX40 is the industry’s most trusted LED video processor. Used on the biggest tours, broadcast studios, and virtual production stages worldwide, the SX40 delivers Brompton’s renowned color science, frame-accurate processing, and pixel-level calibration that sets the standard for LED image quality.
The SX40 supports up to 650,000 pixels per unit and works with all major LED panel manufacturers including ROE Visual, INFiLED, Absen, and more via Brompton’s Tessera receiver cards.
Key Features
- Up to 650,000 pixels per processor
- 4K input support (HDMI 2.0, DisplayPort 1.2, 12G-SDI)
- Brompton Dynamic Calibration — real-time color and brightness optimization
- HDR processing (PQ, HLG, and custom curves)
- Frame-accurate processing with ultra-low latency
- Dark Magic — industry-leading dark scene performance
- PureTone — enhanced color accuracy at all brightness levels
- Genlock and framelock for broadcast sync
- Web-based control interface
Technical Specifications
| Max Pixels | 650,000 per unit |
| Inputs | HDMI 2.0, DP 1.2, 12G-SDI, Fiber (SFP+) |
| Outputs | 16x Gigabit Ethernet to receiver cards |
| Bit Depth | 12-bit processing |
| Refresh Rate | Up to 7,680 Hz |
| Latency | <1 frame |
| HDR | PQ (ST 2084), HLG, Custom |
| Dimensions | 1U rack mount (19″) |
| Weight | 4.5 kg |
| Power | 100W |
Ideal Applications
- Broadcast studios and live TV
- Virtual production (VP/XR) LED volumes
- Concert touring and festival stages
- Corporate events and product launches
- Any installation requiring premium image quality
