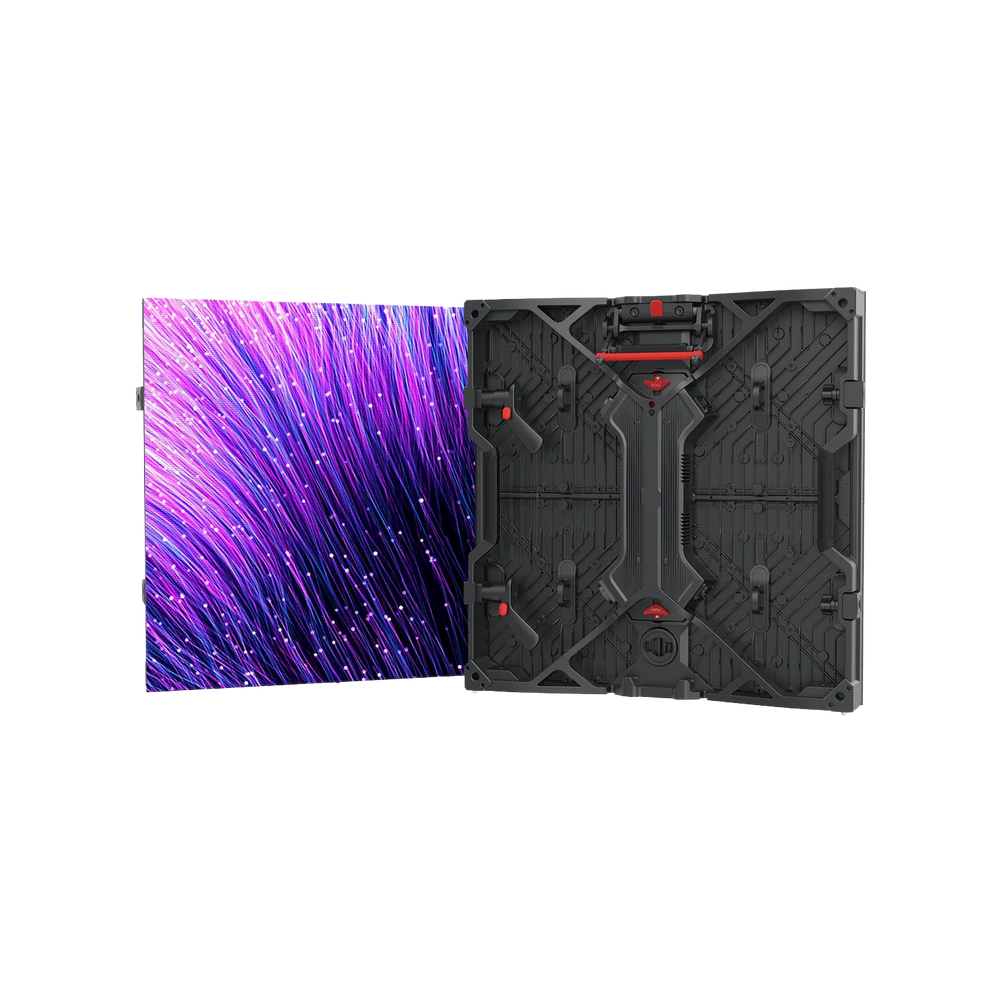

ROE Visual Ruby RB1.5 — 1.5mm Broadcast & Touring LED Panel
The ROE Visual Ruby RB1.5 is one of the most trusted fine-pitch LED panels in the entertainment and broadcast industry. At 1.5mm pixel pitch, it delivers exceptional image quality for close-viewing applications — broadcast studios, virtual production LED volumes (VP/XR stages), corporate presentations, and premium touring.
The Ruby series is known for its reliability on the road. Die-cast aluminum cabinets with quick-lock connectors allow rapid assembly, while front-access magnetic modules enable field repairs without removing panels from the wall.
Key Features
- 1.5mm pixel pitch — true 4K at compact wall sizes
- 500 x 500mm cabinet (19.7 x 19.7 in) — square panel
- Front-service magnetic modules — tool-free swap
- HDR and wide color gamut support
- 3840Hz refresh rate — broadcast camera ready
- Calibrated to DCI-P3 color space
- Brompton Tessera compatible (SX40 / XD)
Technical Specifications
| Pixel Pitch | 1.5mm (1.56 mm nominal) — 320 x 320 pixels per panel |
| LED Type | 4-in-1 Mini LED |
| Cabinet Size | 500 x 500 x 73 mm (19.7 x 19.7 x 2.87 in) |
| Weight | 8.16 kg (17.99 lb) per panel |
| Brightness | 800 nits (max brightness, calibrated) |
| Refresh Rate | 3,840 Hz |
| Color Depth | 14-bit gray scale |
| Viewing Angle | 140° H / 140° V |
| Power (max) | 210 W max / 105 W average per panel |
| Service Access | Front magnetic |
| IP Rating | Indoor |
Ideal Applications
- Virtual production (VP/XR) LED volumes
- Broadcast studios and live TV
- Concert touring — premium IMAG screens
- Corporate keynotes and product launches
- Museum and gallery installations
- Award shows and galas
