Description

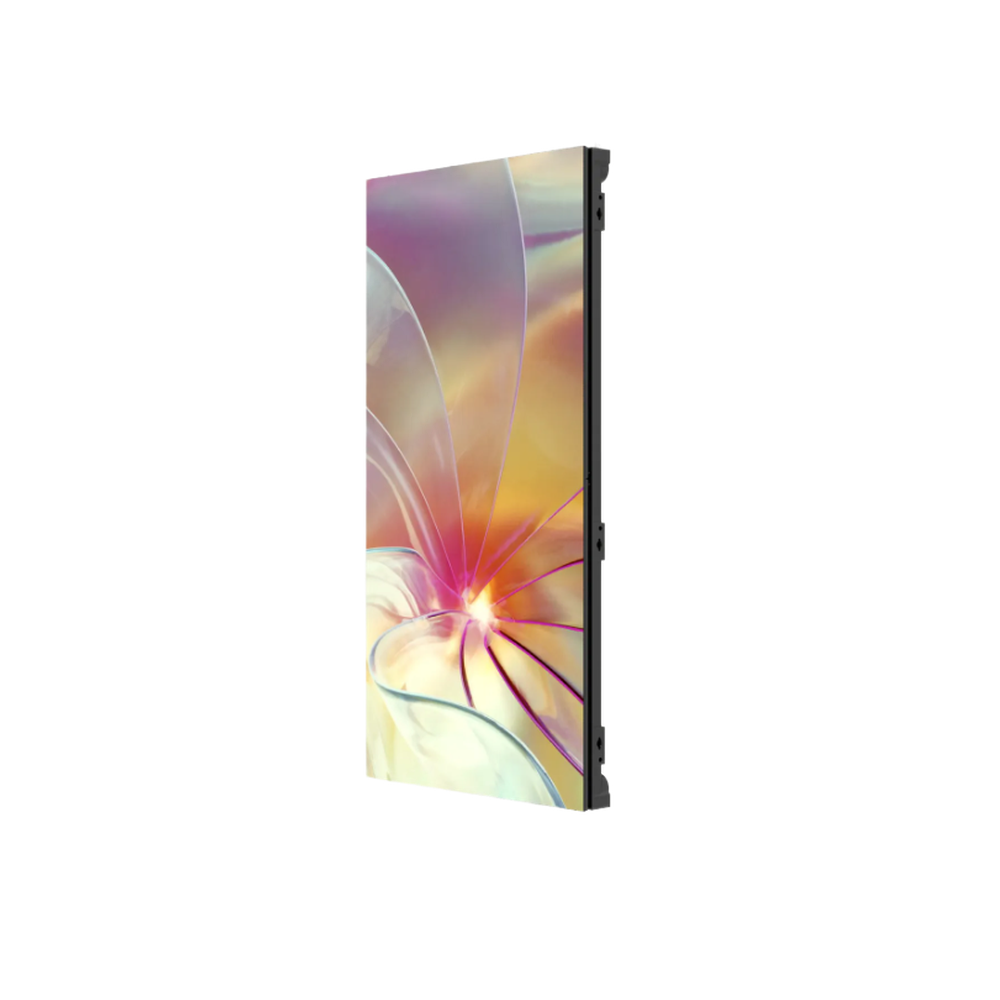

INFiLED ARmk2 2.9 (500×1000) — 2.97mm Rental LED Panel
The INFiLED ARmk2 2.9 Outdoor weatherproof LED panel in the 500x1000mm format is a versatile, industry-standard rental LED panel designed for the demands of live events, concert touring, festival stages, and digital out-of-home (DOOH) applications. The 500x1000mm form factor is the most widely used panel size in the rental and staging industry, ensuring compatibility with virtually all existing rigging hardware, ground support systems, and flight cases.
At 2.97mm pixel pitch, the ARmk2 2.9 hits the sweet spot between resolution and value — fine enough for corporate presentations and close-viewing IMAG screens, yet cost-effective enough to build massive video walls for concerts and festivals. Available in outdoor model: IP65, 5000 nits
Built for Rental
The ARmk2 was designed from the ground up for the rental market. Front and rear service access means modules can be swapped in minutes without removing the panel from the wall — essential during live events. Quick-lock connectors speed up panel-to-panel connections, and the robust die-cast aluminum frame withstands the rigors of constant shipping, handling, and rigging. Easy-to-replace components minimize downtime and repair costs.
Outdoor Versatility
The outdoor IP65 variant features weather-sealed cabinets, conformal-coated PCBs, and 5000-nit brightness for concerts, festivals, and outdoor corporate events.
Technical Specifications — Outdoor
| Pixel Pitch | 2.97mm |
| LED Type | 3-in-1 SMD |
| Cabinet Dimensions | 500 x 1000 x 67mm / 19.7 x 39.4 x 2.6 in |
| Brightness | 5,000 nits |
| Refresh Rate | 7,680 Hz |
| Viewing Angle | 160° horizontal / 155° vertical |
| IP Rating | IP65 |
| Operating Temperature | -20°C to +50°C |
| Service Access | Front and rear |
Signal & Control
Compatible with all Brompton Tessera
Ideal Applications
- Concert touring and festival stages
- Corporate events and conferences
- Outdoor events and rooftop parties
- Trade shows and exhibitions
- Digital out-of-home (DOOH) advertising
- Sporting events and arena screens
- General rental inventory (industry-standard format)
