Description

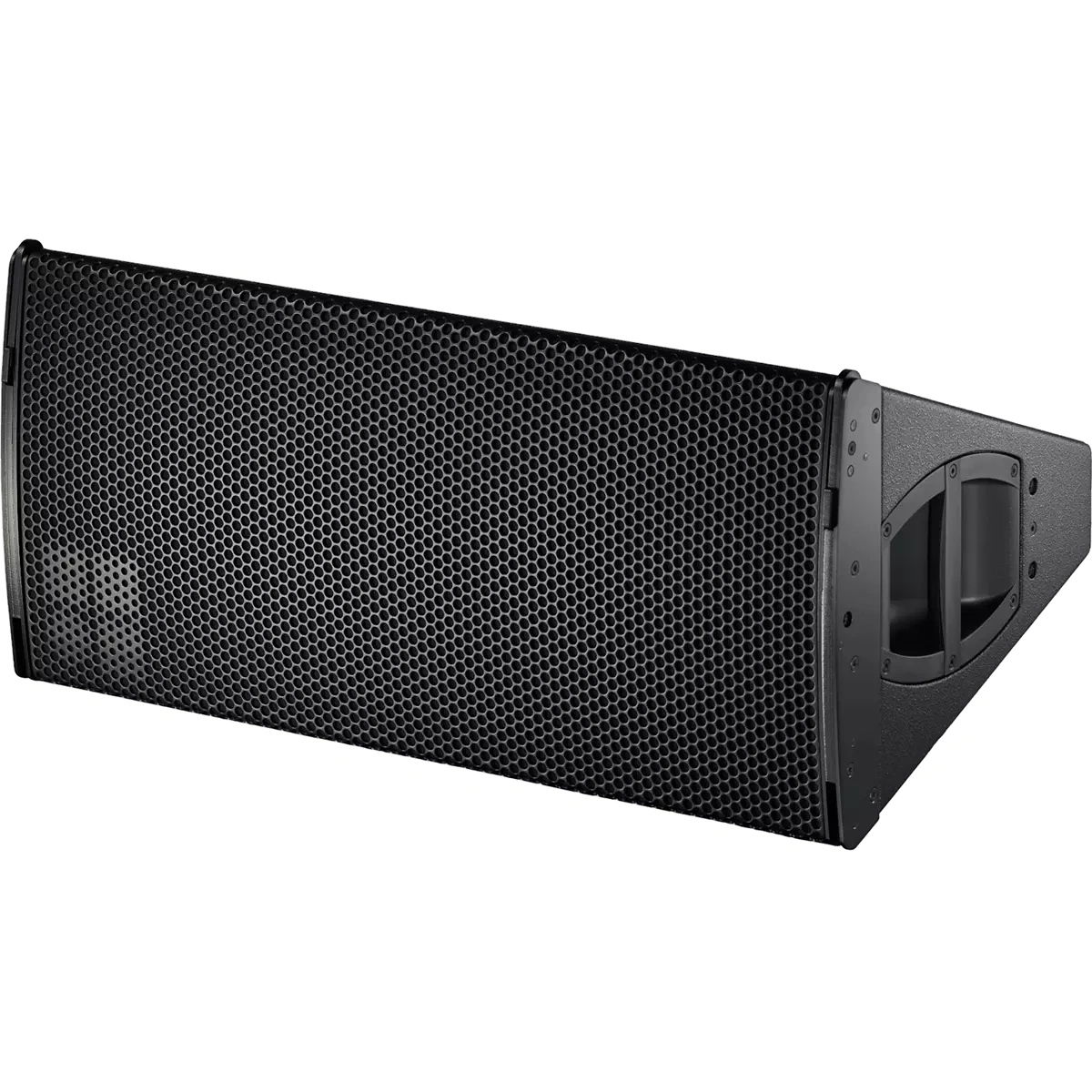

Passive 2-way augmented array loudspeaker with wider 90-degree horizontal dispersion. Acoustically and mechanically compatible with the AL60 for mixed arrays. Same driver complement and weight as the AL60 with optimized horn geometry for broader coverage.
Driver Configuration:
– LF: 2x 10″ neodymium
– HF: 1x 1.4″ exit compression driver, 3″ diaphragm with wave shaping device
– Passive crossover network
Specifications:
– Type: Passive 2-way augmented array
– Frequency Response: 60Hz – 18kHz (-5dB)
– Max SPL: 138dB (with D20/30D) / 139dB (with D40/D80)
– Horizontal Dispersion: 90 degrees
– Vertical Dispersion: 30 degrees
– Splay Angles: Variable +/- 10 degrees
– Array Size: 2-4 loudspeakers
– Connectors: NLT4
– Dimensions: approx. 550mm W x 350mm H x 400mm D (21.7″ x 13.8″ x 15.7″)
– Weight: 23 kg / 50.7 lbs
– Amplification: d&b D40, D80, or 40D
– Mechanically compatible with AL60
