Description

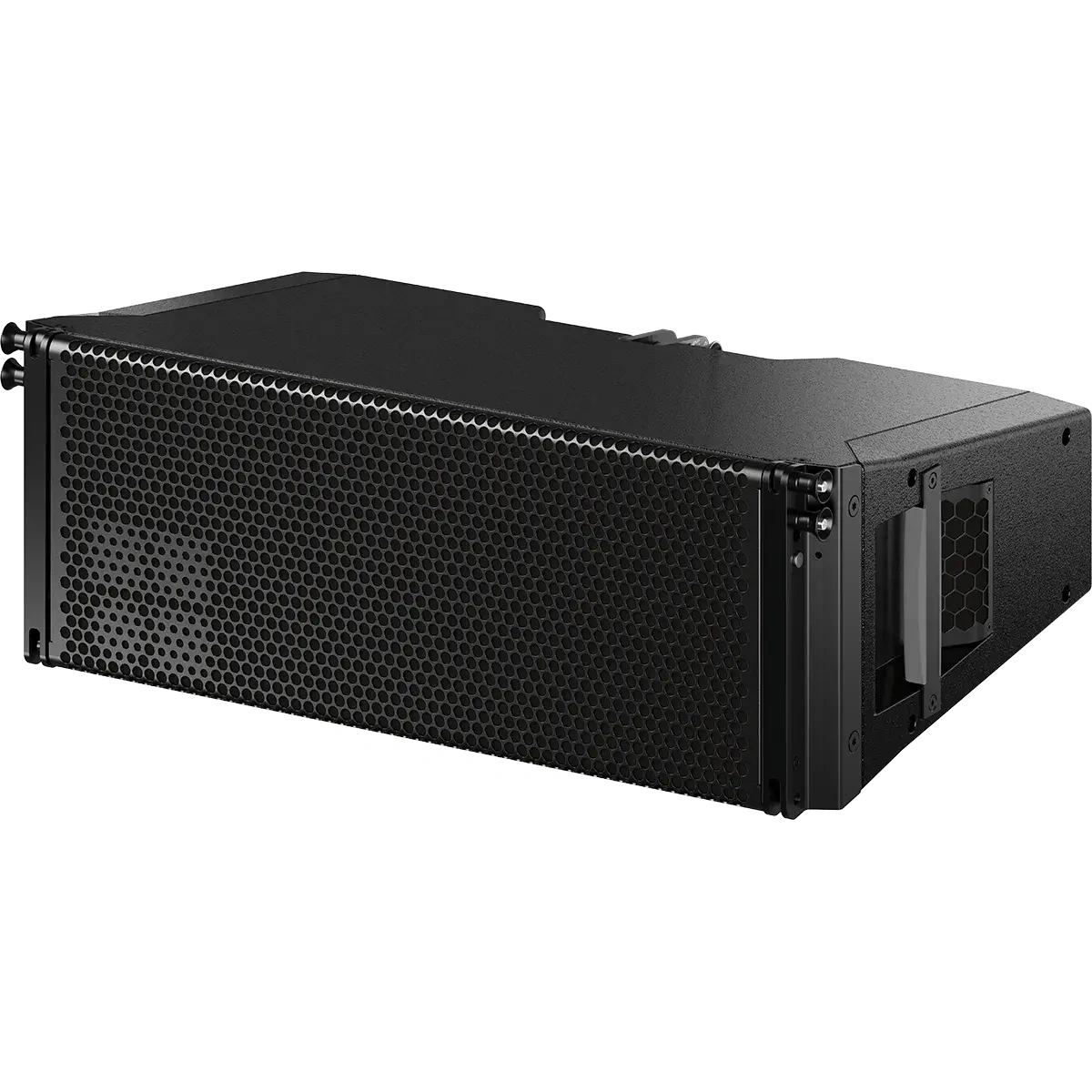

Wide-coverage variant of the CCL compact curved line array with 120-degree horizontal dispersion. Same cabinet dimensions and weight as the CCL8 for direct integration in mixed arrays.
Driver Configuration:
– LF: 2x 7″ (front-firing)
– LF (cardioid): 2x 5″ (side/rear-firing)
– HF: 2x 1.75″ transducers
Specifications:
– Type: Passive compact curved line array
– Frequency Response: 62Hz – 18kHz (-5dB)
– Max SPL: 136dB (1m, with D80)
– Horizontal Dispersion: 120 degrees
– Connectors: NLT4
– Enclosure: Marine plywood
– Dimensions: 209mm W x 593mm H x 355mm D (8.2″ x 23.3″ x 14″)
– Weight: 18 kg / 39.7 lbs
– Amplification: d&b D40, D80, or 40D
– Acoustically & mechanically compatible with CCL8
