Description

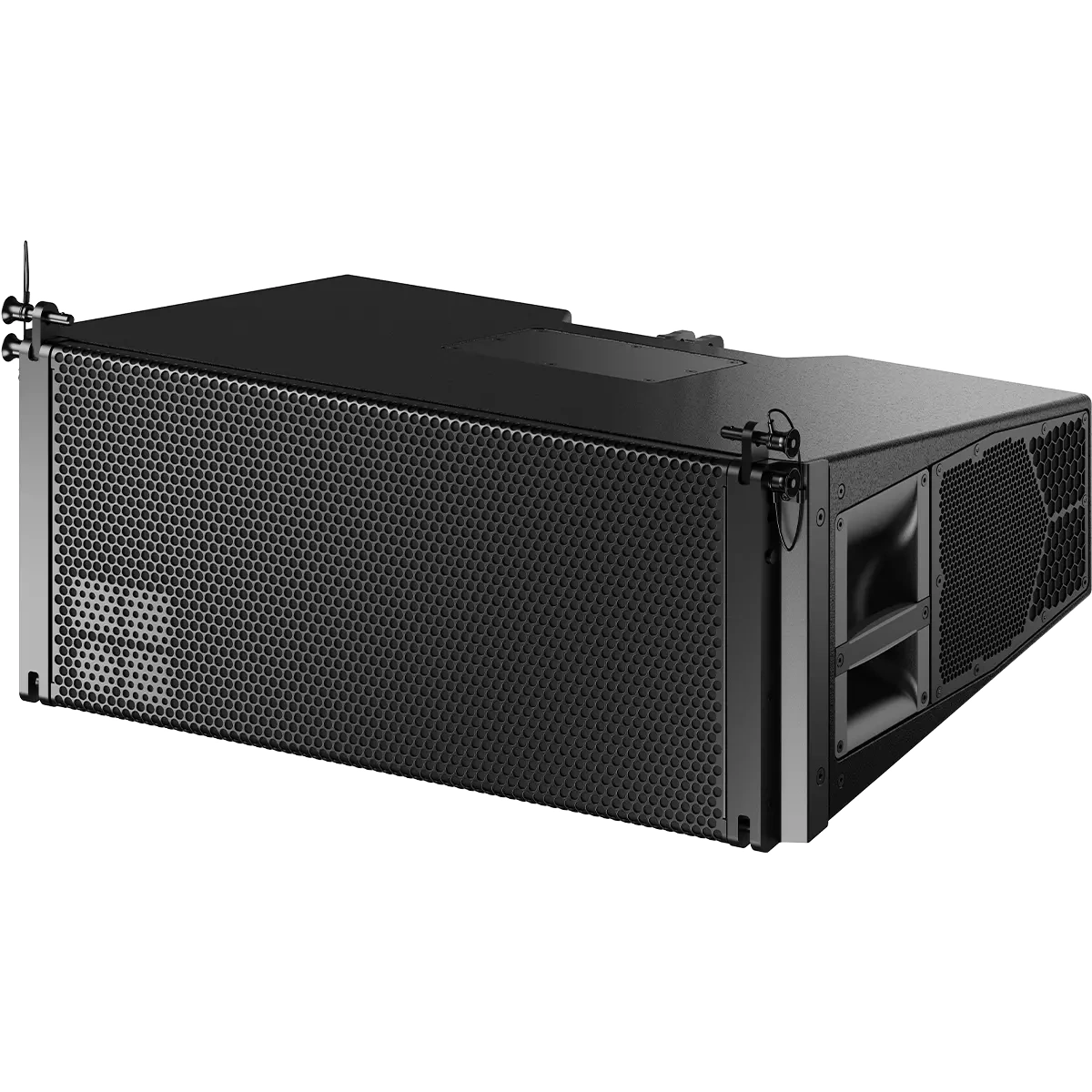

3-way passive line array module for medium-scale touring and installation. The XSL8 produces an 80-degree constant directivity dispersion pattern maintained over its entire operating bandwidth. Injection-molded ABS polycarbonate enclosure with impact and weather-protected 2K finish.
Driver Configuration:
– LF: 2x 8″ neodymium (forward facing) + 2x 6.5″ neodymium (side firing)
– MF: 1x horn-loaded 6.5″ neodymium
– HF: 2x 1″ exit compression drivers, 2″ voice coils with wave shaping device
Specifications:
– Type: 3-way passive line array
– Frequency Response: 60Hz – 18kHz (-5dB)
– Max SPL: 141dB (1m, free field)
– Horizontal Dispersion: 80 degrees
– Splay Angles: 0-7 degrees in 1-degree steps
– Connectors: NLT4 F/M
– Enclosure: Injection-molded ABS polycarbonate, 2K finish
– Flying: Up to 24 cabinets from XSL Flying Frames (compression/tension)
– Dimensions: 560mm W x 241mm H x 420mm D (22″ x 9.5″ x 16.5″)
– Weight: 39 kg / 86 lbs
– Amplification: d&b D80 or D40 required
– Coverage Distance: 100m+ depending on conditions
