Description

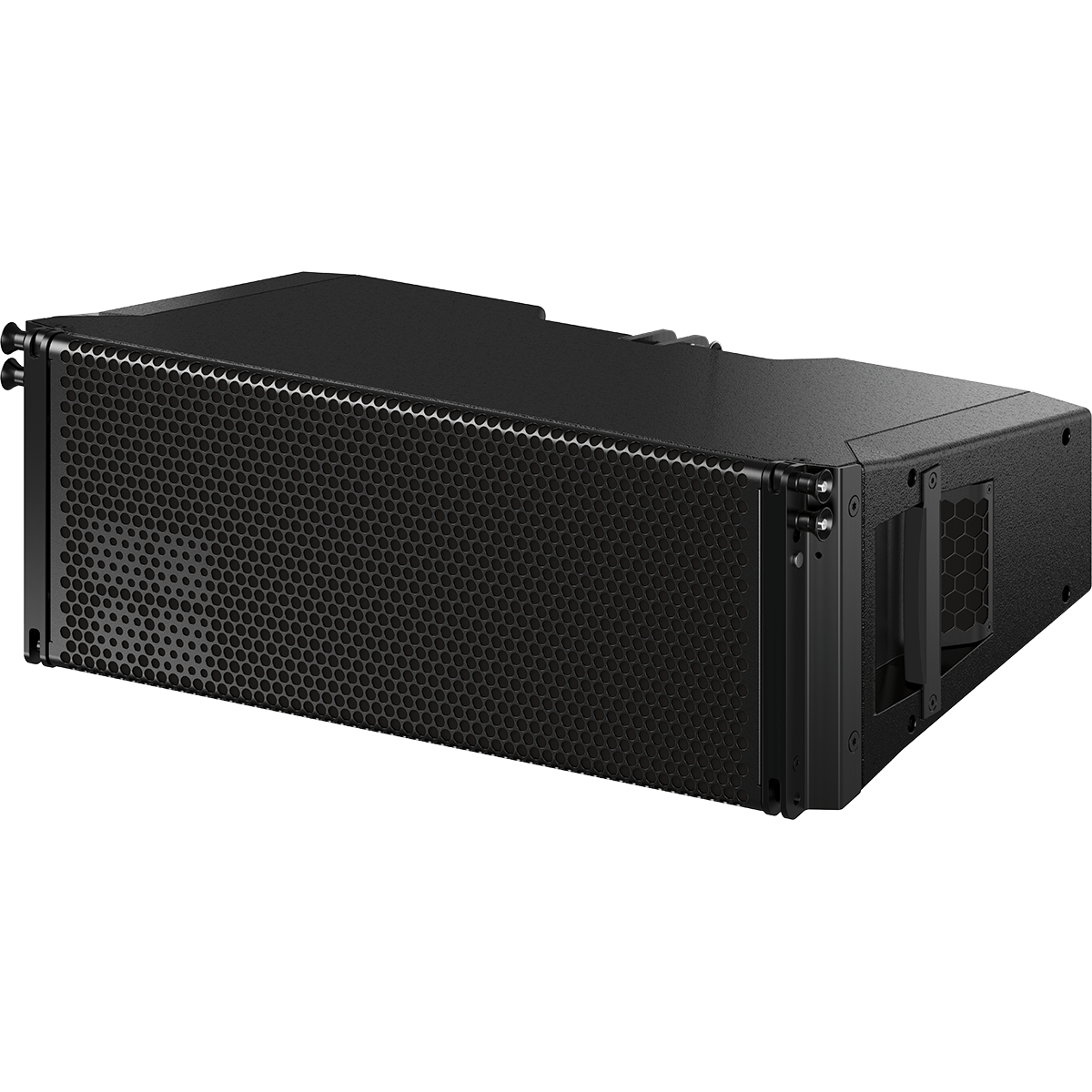

Compact curved line array loudspeaker with 80-degree horizontal dispersion. Passive design enabling single-channel amplifier operation. Features a newly revised and patented cardioid principle for controlled directivity. Ideal for theaters, auditoriums, houses of worship, and touring.
Driver Configuration:
– LF: 2x 7″ (front-firing)
– LF (cardioid): 2x 5″ (side/rear-firing)
– HF: 2x 1.75″ transducers
Specifications:
– Type: Passive compact curved line array
– Frequency Response: 60Hz – 18kHz (-5dB)
– Max SPL: 136dB+ (1m, with D80)
– Horizontal Dispersion: 80 degrees
– Connectors: NLT4
– Enclosure: Marine plywood
– Dimensions: 209mm W x 593mm H x 355mm D (8.2″ x 23.3″ x 14″)
– Weight: 18 kg / 39.7 lbs
– Amplification: d&b D40, D80, or 40D
– Available as CCLi (install version)
