Description

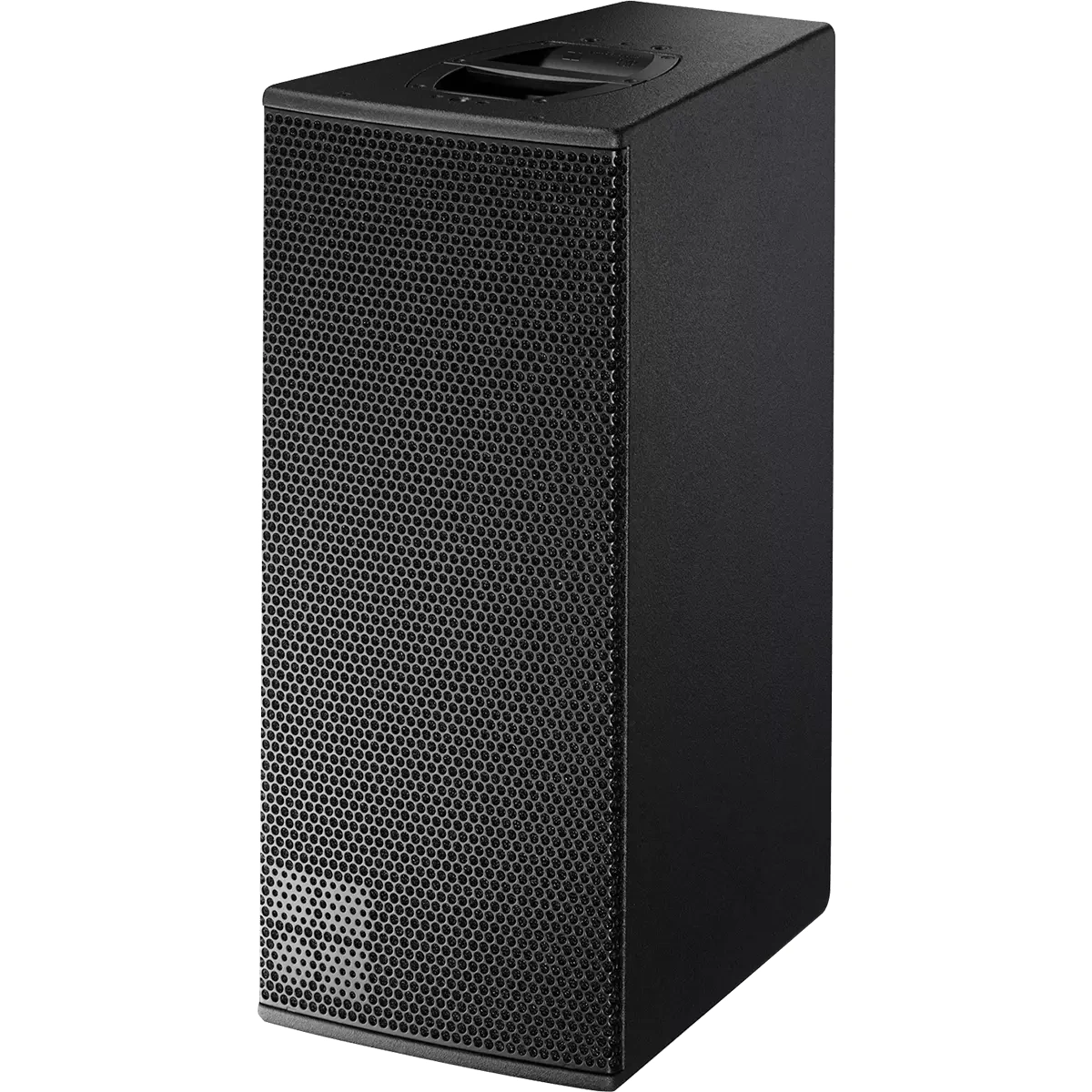

d&b audiotechnik V10P — 3-Way Point Source Loudspeaker
The d&b V10P is a high-performance 3-way passive point source loudspeaker from the V-Series, designed for applications requiring powerful, precisely controlled coverage from a compact enclosure. Featuring two 10″ drivers in a dipole arrangement, a horn-loaded 8″ midrange driver, and a 1.4″ compression driver on a rotatable constant-directivity horn, the V10P delivers articulate, full-range sound with 110° x 40° dispersion.
With a maximum SPL of 139 dB (D80), the V10P punches well above its weight class. The rotatable horn allows horizontal or vertical orientation without remounting, providing maximum deployment flexibility. The V10P excels as a front fill, out fill, delay, or standalone full-range system for mid-to-large venues.
Technical Specifications
| Type | 3-way passive point source |
| Drivers | 2x 10″ neodymium (dipole) + 1x 8″ MF horn-loaded + 1x 1.4″ HF compression driver |
| Frequency Response (-5 dB) | 59 Hz — 18 kHz |
| Dispersion | 110° x 40° (rotatable CD horn) |
| Max SPL | 136 dB (with D20/30D) / 139 dB (with D80) |
| Power Handling (RMS/Peak) | 500 / 2,000 W |
| Dimensions (HxWxD) | 700 x 308 x 466 mm / 27.5 x 12 x 18.3 in |
| Weight | 33 kg / 75 lbs |
| Connector | NL4 / NLT4 |
| Cabinet | Marine plywood, PCP finish |
Ideal Applications
- Front fill and out fill for concert arrays
- Delay systems for large venues
- Standalone PA for mid-size events
- Corporate presentations requiring high SPL
