Description
Large-format 3-way passive line array for major concert touring and festivals. The KSL8 delivers extraordinary output and fidelity with an 80-degree horizontal dispersion pattern maintained over the entire operating bandwidth down to the lowest frequencies.
Driver Configuration:
– LF: 2x 10″ neodymium (forward facing) + 2x 8″ neodymium (side firing)
– MF: 1x 8″ neodymium horn-loaded
– HF: 2x 1.4″ exit compression drivers, 3″ voice coils with wave shaping device
Specifications:
– Type: 3-way passive line array
– Frequency Response: 54Hz – 18kHz (-5dB)
– Max SPL: 145dB (1m, free field)
– Horizontal Dispersion: 80 degrees
– Splay Angles: 0-10 degrees in 0.5-degree steps
– Connectors: NLT4 F/M
– Enclosure: Marine plywood, impact/weather protected
– Flying: Compression and tension rigging from KSL Flying Frames
– Dimensions: 690mm W x 356mm H x 520mm D (27.2″ x 14″ x 20.5″)
– Weight: 51 kg / 112 lbs
– Amplification: d&b D80 required

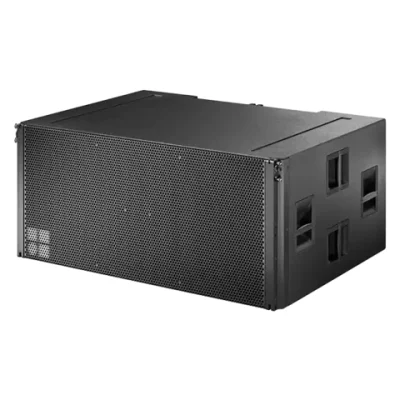

– System: Pairs with KSL12, KSL-SUB, SL-SUB
