Description

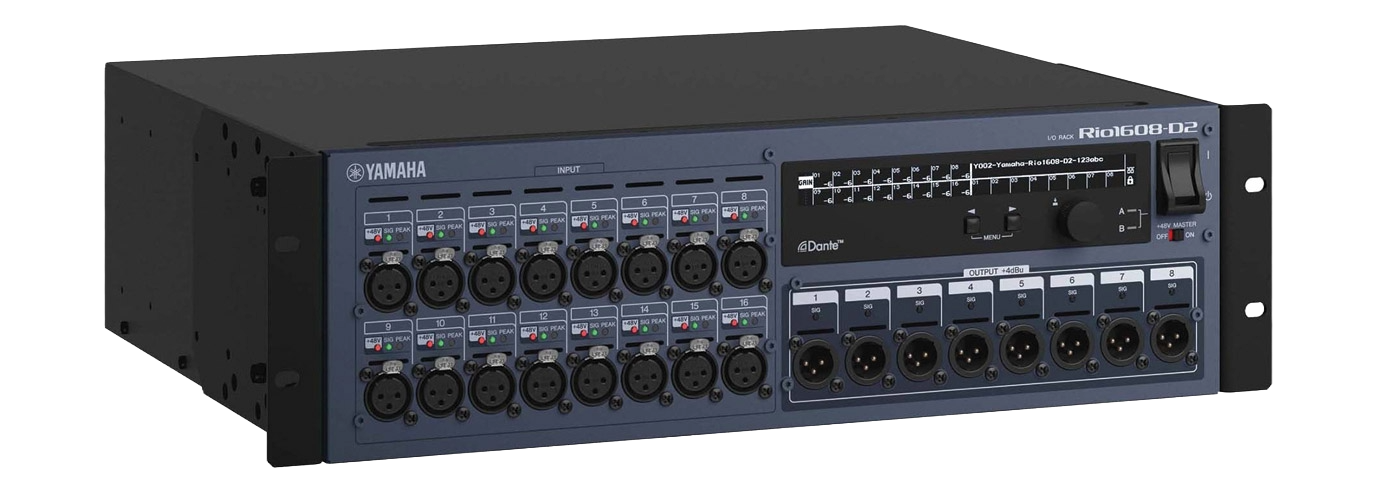

The Yamaha Rio1608-D2 Digital Network Remote I/O Unit is a 16-input/8-output Dante-equipped stage box designed for Yamaha CL, QL, and RIVAGE PM series consoles. It connects to the mixing console over a single Ethernet cable, replacing heavy analog snakes with lightweight, reliable digital audio transport.
Key Features
- 16 mic/line inputs + 8 line outputs — Ample I/O for most live sound stages
- Dante networking — Standard Ethernet connectivity with automatic redundancy on the secondary port
- Yamaha D-PRE preamps — Remotely controllable from the console with per-channel gain, phantom power, and pad
- Cascadable — Daisy-chain multiple Rio units for expanded I/O across the stage
- 3U rack mount — Compact, rugged steel chassis for touring and installation
- Redundant Dante ports — Primary and secondary network connections for failover
Compatible Consoles
- Yamaha QL1 / QL5
- Yamaha CL1 / CL3 / CL5
- Yamaha RIVAGE PM3 / PM5 / PM7 / PM10
Technical Specifications
| Inputs | 16x mic/line (XLR, D-PRE) |
| Outputs | 8x line (XLR) |
| Networking | Dante (2x etherCON, redundant) |
| Sample Rate | 44.1 / 48 / 88.2 / 96 kHz |
| Form Factor | 3U rack mount |
| Power | AC 100–240V, 50/60 Hz |
| Weight | 10.2 kg (22.5 lbs) |
Pair with the Yamaha QL1 for a complete digital mixing system. Request a quote or call (718) 218-5941.
