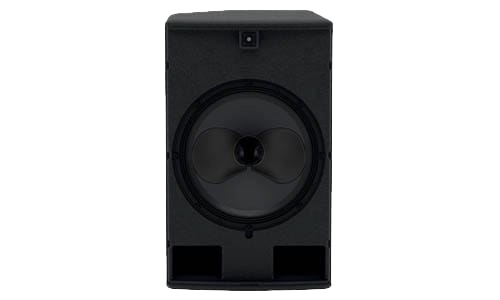

Martin Audio CDD-LIVE 15 Powered Speaker
The CDD-LIVE 15 is the larger sibling of the CDD-LIVE 12, featuring a 15″ LF driver and 1.4″ HF exit for higher output and extended low-frequency response. The coaxial CDD design maintains consistent tonal quality across the entire coverage area.
Key Features
- 15″ LF / 1.4″ HF coaxial CDD driver
- Differential Dispersion: 100°-60° x 60°
- 2500W peak Class D amplification
- 132dB peak SPL
- Onboard DSP with FIR optimization
- Dante digital audio networking built-in
- Remote control via VU-NET software
- Multiple rigging points and pole mount
- Weather-resistant touring enclosure
Technical Specifications
| Type | 2-way coaxial powered |
| LF Driver | 15″ (380mm) CDD |
| HF Driver | 1.4″ (35mm) coaxial |
| Peak Power | 2500W |
| Peak SPL | 132dB |
| Frequency Response | 45Hz – 20kHz |
| Dispersion | 100°-60° x 60° (Differential) |
| Networking | Dante (2-in / 2-out) |
| Inputs | XLR analog + Dante |
| Weight | 37kg (81.6 lbs) |
| Dimensions (HxWxD) | 696 x 427 x 422mm |
